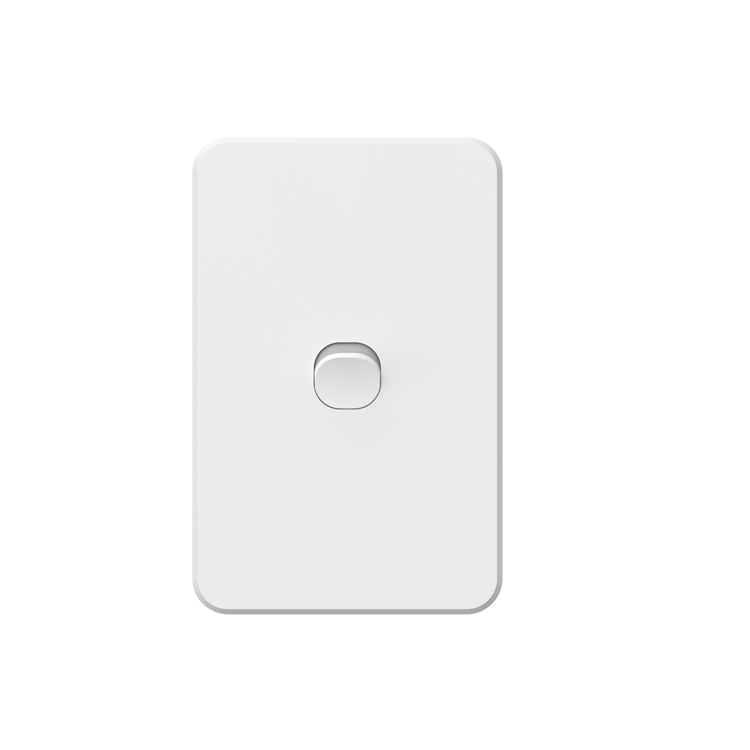

ARIA Matte Vertical 16A Switch Assembly 1-6 Gang
One gang or six.
Designed for the wall.
Built for the work.
Vertical Switch Assembly 16AX
ARIA’s Vertical Switch Assembly pairs a slim 6.25mm face with a stainless-steel-reinforced grid that takes screw load off the face. ARIA’s matte polycarbonate plates resist oil and grime. The familiar 30 Series format keeps your options open: rotate the mechs vertically or horizontally, or swap in any ARIA mech. Vertically fitted 16AX single-pole mechs are supplied, each built to handle high inrush currents with 1-way and 2-way switching. Each mech’s terminals take up to four 1.5mm² or two 2.5mm² conductors. Grid mounting keeps each switch action crisp without cover-plate flex. Tested to 50,000 mechanical cycles and backed by a 25-year parts-and-labour warranty.
16AX for high inrush loads
Single pole · 1-way / 2-way
Accepts any ARIA mech
25-year warranty
Pre-assembled.
Or configure your own.
Choose a complete switch assembly with 16AX mechs already fitted in the orientation you need, or start with an ARIA switch plate and add the mechs for the job.
Vertical assemblies come 1–6 gang in Matte White and Matte Black. Horizontal assemblies come 1–6 gang in Matte White.
Switch plates span all four ARIA finishes, support vertical or horizontal mech orientation and are sold separately from the mechanisms. Blank plates finish unused points in Matte White or Matte Black.
Matte or metal
Matte polycarbonate resists oils and grime
Real anodised aluminium catches light at the edge
Mechs paired to the finish
White · Matte White
Black · Matte Black / Dark Grey Silver
Dark Grey · Light Grey Brass
Slim. Not timid
Stainless-steel-reinforced grid
Keeps the 6.25mm face flat without extra bulk
30 Series mech aperture
Familiar 30 Series format
Everyday switches · LED-backlit · Rotary dimming
A crisp flick
Grid-mounted mechs
No cover-plate flex
Confidence,
Covered.
50,000
mechanical cycles
Four times the required minimum. We kept going.
30,000
electrical cycles
Under load. 12,000 required. We tested 30,000.
UV, weathering,
abrasion
Finishes tested against sun, weather and everyday wear.
Stainless-steel reinforced plates
Takes screw load off the face, helping corners stay flat.
No hold music
Local technical support, without the runaround.
Seven details
that set ARIA apart.
Designed for the wall. Built for the work.
144 products for the whole home.
Coordinated plates and mechs bring power, control, fast charging, data and accessories together across four finishes, giving every room one cohesive look.
See the full range >
Four finishes. Not shy. Not shiny.
Two polycarbonate mattes made to resist oil & grime. Two anodised aluminium signatures, with contrasting edges that catch light without chasing attention.
Meet the finishes >
Slim. Not timid.
A stainless-steel-reinforced grid takes screw load off the slim 6.25mm face, helping corners stay flat without extra brackets or bulk.
See what’s behind the plate >
Australia’s first 65W Twin USB-C outlet.
Laptop-capable power, built into the wall through high-efficiency power conversion and ventilation. Get 65W solo or 20W + 45W together. No charger brick.
Shop 65W USB-C >
Installer-first. Right down to the terminal.
Familiar 30 Series mechs, generous 16mm² terminals, captive screws and 54mm hole-saw cut-outs make planning, wiring, and fit-off faster, from wall to cabinetry.
Discover installer benefits >
Dimming, in a whole new light.
Choose a familiar rotary dial, or ARIA’s signature LED-backlit toggle dimmer. Press the toggle on/off, push up to brighten, down to dim, with smooth fades.
Explore ARIA dimmers >
25-year warranty. Tested past the required minimum.
25-year parts-and-labour cover on non-electronic products. Seven years on electronics. Backed by 50,000 mechanical, 30,000 loaded electrical and 30,000 plug cycles.
See the proof >Shop the range.
| Plate Thickness | 6.25mm |
| Mounting Centre | 84mm |
| Plate Size | 120mm (H) x 78mm (W) |
| Plate Material | Polycarbonate |
| Mechanism | Voltex ASM16 (for more details on mechanism, see ASM16 specification sheet) |
| Orientation | Vertical |
| Compliance | AS/NZS 3133 |
| Warranty | 25 years |
