ARIA 10A Intermediate Switch Mechanism
From everyday to everything else.
50+ ways to switch ARIA.

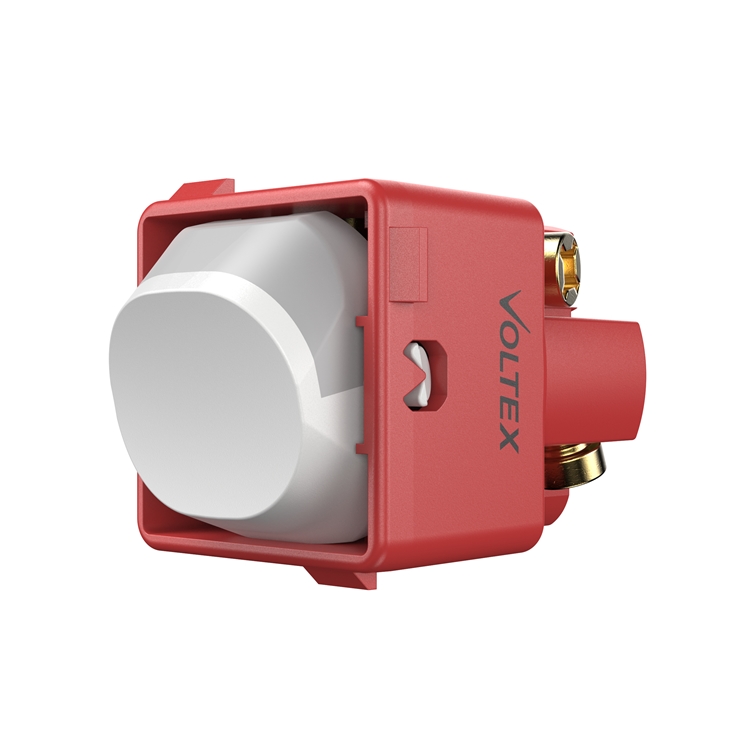

10A Intermediate Switch Mech
Multi-way control. Same ARIA finish. Rated 10A at 250V AC, the intermediate mechanism keeps multi-way switching inside the ARIA family. The mech comes in two finishes, each for one coordinated front face. Matte White pairs tone-on-tone with Matte White ARIA plates. Matte Black pairs with Matte Black and Dark Grey Silver ARIA plates. The 30 Series format keeps the fit familiar. Screw terminals accommodate up to four 1.5mm² or two 2.5mm² conductors. Grid mounting keeps every flick crisp, without cover-plate flex. Tested to 50,000 mechanical cycles, more than four times the required minimum. Backed by a 25-year parts-and-labour warranty.
ARIA 30 Series mech
10A intermediate
Multi-way switching
25-year warranty
One familiar fit.
More ways to switch.
From 10A lighting to 40A appliance control.
ARIA keeps everyday switching, isolation, multi-way and three-position control inside one family. The familiar 30 Series format keeps your options open. Grid-mounted mechs give every flick a crisp response, without cover-plate flex. Icon-marked options keep functions clear at a glance, without adding labels to ARIA’s clean front face.
Shop now
Shop now
Shop now
Shop now
Shop now
Fan to oven. Clear at a glance.
No tiny labels interrupting the finish.
White · Matte White plate.
Black · Matte Black / Dark Grey Silver plates.
Dark Grey · Light Grey Brass plate.
Honours the familiar fit.
More ways to configure.
Grid-mounted mechs.
No cover-plate flex.
Confidence,
Covered.
Seven details
that set ARIA apart.
Designed for the wall. Built for the work.
144 products for the whole home.
Coordinated plates and mechs bring power, control, fast charging, data and accessories together across four finishes, giving every room one cohesive look.
See the full range >
Four finishes. Not shy. Not shiny.
Two polycarbonate mattes made to resist oil & grime. Two anodised aluminium signatures, with contrasting edges that catch light without chasing attention.
Meet the finishes >
Slim. Not timid.
A stainless-steel-reinforced grid takes screw load off the slim 6.25mm face, helping corners stay flat without extra brackets or bulk.
See what’s behind the plate >
Australia’s first 65W Twin USB-C outlet.
Laptop-capable power, built into the wall through high-efficiency power conversion and ventilation. Get 65W solo or 20W + 45W together. No charger brick.
Shop 65W USB-C >
Installer-first. Right down to the terminal.
Familiar 30 Series mechs, generous 16mm² terminals, captive screws and 54mm hole-saw cut-outs make planning, wiring, and fit-off faster, from wall to cabinetry.
Discover installer benefits >
Dimming, in a whole new light.
Choose a familiar rotary dial, or ARIA’s signature LED-backlit toggle dimmer. Press the toggle on/off, push up to brighten, down to dim, with smooth fades.
Explore ARIA dimmers >
25-year warranty. Tested past the required minimum.
25-year parts-and-labour cover on non-electronic products. Seven years on electronics. Backed by 50,000 mechanical, 30,000 loaded electrical and 30,000 plug cycles.
See the proof >Shop the range.
| Product Codes | Finish |
| ASMI | Matte White Dolly – To suit Matte White Plates |
| ASMIB | Matte Black Dolly – To suit Matte Black and Dark Grey Silver Plates |
| ASMIDG | Dark Grey Dolly – To suit Light Grey Brass Plates |
| Rated Current | 10A |
| Rated Voltage | 250 V AC |
| Switching | Single Pole [Active Only] |
| Switch Function | 2-way [Intermediate] |
| Connection type | Screw terminals |
| Terminal size | Accommodates 4 x 1.5mm² or 2 x 2.5mm² cables |
| Terminal bore | Ø=5.5mm, depth=14mm |
| Housing Material | Nylon |
| Contact Material | Silver alloy |
| Body size | Fits Ø = 22mm hole |
| Compliance | AS/NZS 3133 |
| Warranty | 25 Years |
