ASM16-

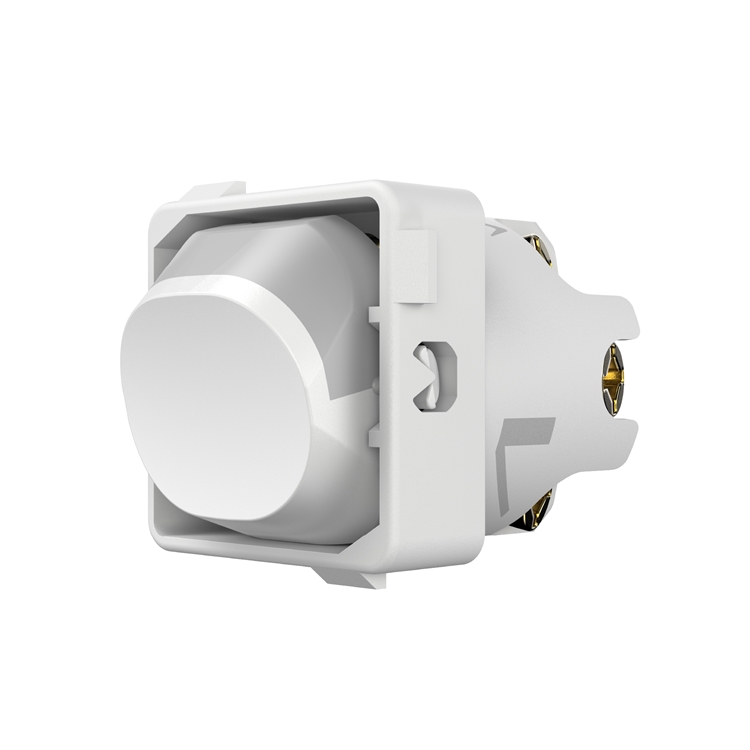

ARIA 16A Switch Mechanism

Inner Carton
units
Outer Carton
units

From everyday to everything else.

50+ ways to switch ARIA.

16AX Single-Pole Switch Mech

ARIA’s 16AX Single-Pole Switch Mechanism is a workhorse of the ARIA range. Its 16AX rating is built to handle high inrush currents. 1-way and 2-way switching covers everyday circuits. Fan, Heat, Light and Sensor icons make the function clear at a glance without adding a label to the plate. The mech comes in three finishes, each for one coordinated front face. Matte White pairs tone-on-tone with Matte White ARIA plates. Matte Black pairs with Matte Black and Dark Grey Silver ARIA plates. Dark Grey pairs with Light Grey Brass ARIA plates. The 30 Series format keeps the fit familiar. Grid mounting gives every flick a crisp response without cover-plate flex, while screw terminals take up to four 1.5mm² or two 2.5mm² conductors. Tested to 50,000 mechanical cycles, more than four times the required minimum, and backed by a 25-year parts-and-labour warranty.

ARIA 30 Series mech

16AX for high inrush

Single pole · 1-way / 2-way

25-year warranty

From 10A lighting to 40A appliance control.

ARIA keeps everyday switching, isolation, multi-way and three-position control inside one family. The familiar 30 Series format keeps your options open. Grid-mounted mechs give every flick a crisp response, without cover-plate flex. Icon-marked options keep functions clear at a glance, without adding labels to ARIA’s clean front face.

Voltex Aria 16A Switch Mechanism Matte White

16AX Single Pole

No printed icon Fan Heat Light Sensor
Shop now
Voltex Aria 25A Double Pole Mechanism Matte White

10A & 25A Double Pole

No printed icon Hob Oven HWS
Shop now
Voltex Aria 40A Switch Mechanism Matte White

40A Single Pole

No printed icon Hob Oven Range
Shop now
Voltex Aria 10A Intermediate Switch Mechanism Matte White

10A Intermediate

No printed icon
Shop now
Voltex Aria 10A 3 Position Switch Mechanism Matte White - OPEN/OFF/CLOSED

10A Centre-Off

Open/Off/Closed Sensor/Off/On
Shop now
A Voltex ARIA Matte Black switch plate on a marble wall, its two rockers marked with a light icon and a fan icon
Function-marked switching

Fan to oven. Clear at a glance.

No tiny labels interrupting the finish.

Four Voltex ARIA rockers side by side in Dark Grey, Matte Black, Matte White and Dark Grey Silver
Colour-matched mechs

White · Matte White plate.

Black · Matte Black / Dark Grey Silver plates.

Dark Grey · Light Grey Brass plate.

A white Voltex ARIA switch mechanism being fitted into the 30 Series aperture of a Matte Black plate
30 Series mech aperture

Honours the familiar fit.

More ways to configure.

A finger pressing the rocker of a Voltex ARIA Matte White switch
A crisp flick

Grid-mounted mechs.

No cover-plate flex.

Confidence,
Covered.

Voltex 25-year parts and labour warranty badge
Parts-and-labour on non-electronic products.

144 coordinated products.

Every point, elevated.

Discover ARIA

Seven details
that set ARIA apart.

Designed for the wall. Built for the work.

144 products for the whole home.

Coordinated plates and mechs bring power, control, fast charging, data and accessories together across four finishes, giving every room one cohesive look.

See the full range >
Close-up of Voltex ARIA finishes with a contrasting semi-gloss edge

Four finishes. Not shy. Not shiny.

Two polycarbonate mattes made to resist oil & grime. Two anodised aluminium signatures, with contrasting edges that catch light without chasing attention.

Meet the finishes >
Voltex ARIA slim 6.25mm profile plate shown at an angle

Slim. Not timid.

A stainless-steel-reinforced grid takes screw load off the slim 6.25mm face, helping corners stay flat without extra brackets or bulk.

See what’s behind the plate >
Voltex ARIA 65W Twin USB-C outlet charging a laptop on a desk

Australia’s first 65W Twin USB-C outlet.

Laptop-capable power, built into the wall through high-efficiency power conversion and ventilation. Get 65W solo or 20W + 45W together. No charger brick.

Shop 65W USB-C >
Rear of a Voltex ARIA mechanism showing captured-screw cage terminals

Installer-first. Right down to the terminal.

Familiar 30 Series mechs, generous 16mm² terminals, captive screws and 54mm hole-saw cut-outs make planning, wiring, and fit-off faster, from wall to cabinetry.

Discover installer benefits >
Finger pressing a glowing Voltex ARIA dimmer control

Dimming, in a whole new light.

Choose a familiar rotary dial, or ARIA’s signature LED-backlit toggle dimmer. Press the toggle on/off, push up to brighten, down to dim, with smooth fades.

Explore ARIA dimmers >
Voltex ARIA switch undergoing warranty cycle testing

25-year warranty. Tested past the required minimum.

25-year parts-and-labour cover on non-electronic products. Seven years on electronics. Backed by 50,000 mechanical, 30,000 loaded electrical and 30,000 plug cycles.

See the proof >
Product Codes Finish
ASM16 / FAN / HEAT / LIG / SEN Matte White Dolly – To suit Matte White Plates
ASM16B / BFAN / BHEAT / BLIG / BSEN Matte Black Dolly – To suit Matte Black and Dark Grey Silver Plates
ASM16DG / DGFAN / DGHEAT / DGLIG / DGSEN Dark Grey Dolly – To suit Light Grey Brass Plates
Rated Current 16AX
Rated Voltage 250V AC
Switching Single Pole [Active Only]
Switch Function 1-way, 2-way
Connection Type Screw Terminals
Terminal Size Accommodates 4 x 1.5mm² or 2 x 2.5mm² cables
Terminal Bore Ø = 4mm, depth = 10.5mm
Housing Material Nylon
Contact Material Silver alloy
Body Size Fits Ø = 22mm hole
Compliance AS/NZS 3133
Warranty 25 years
