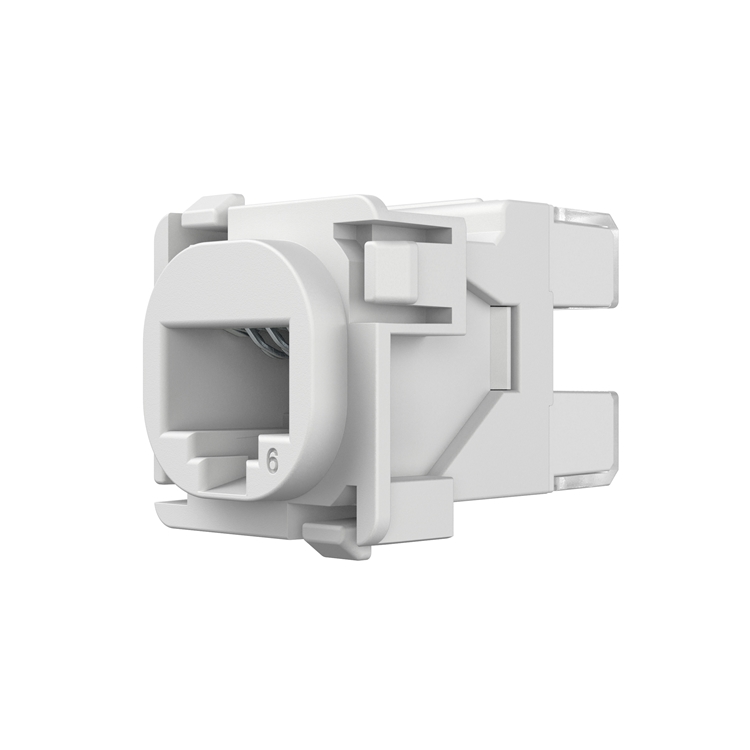

Cat6 RJ45 Data Socket
ARIA’s Cat6 RJ45 Socket keeps the data point inside the ARIA finish. The socket comes in three finishes, each for one clean front face. Matte White pairs with Matte White plates. Matte Black pairs with Matte Black and Dark Grey Silver plates. Dark Grey pairs with Light Grey Brass plates. Supports T568A / T568B wiring with Krone punch-down termination. Backed by a 25-year parts-and-labour warranty.
ARIA 30 Series mech
Supports T568A / T568B wiring
Krone punch-down
25-year warranty
Confidence,
Covered.
Seven details
that set ARIA apart.
Designed for the wall. Built for the work.
144 products for the whole home.
Coordinated plates and mechs bring power, control, fast charging, data and accessories together across four finishes, giving every room one cohesive look.
See the full range >
Four finishes. Not shy. Not shiny.
Two polycarbonate mattes made to resist oil & grime. Two anodised aluminium signatures, with contrasting edges that catch light without chasing attention.
Meet the finishes >
Slim. Not timid.
A stainless-steel-reinforced grid takes screw load off the slim 6.25mm face, helping corners stay flat without extra brackets or bulk.
See what’s behind the plate >
Australia’s first 65W Twin USB-C outlet.
Laptop-capable power, built into the wall through high-efficiency power conversion and ventilation. Get 65W solo or 20W + 45W together. No charger brick.
Shop 65W USB-C >
Installer-first. Right down to the terminal.
Familiar 30 Series mechs, generous 16mm² terminals, captive screws and 54mm hole-saw cut-outs make planning, wiring, and fit-off faster, from wall to cabinetry.
Discover installer benefits >
Dimming, in a whole new light.
Choose a familiar rotary dial, or ARIA’s signature LED-backlit toggle dimmer. Press the toggle on/off, push up to brighten, down to dim, with smooth fades.
Explore ARIA dimmers >
25-year warranty. Tested past the required minimum.
25-year parts-and-labour cover on non-electronic products. Seven years on electronics. Backed by 50,000 mechanical, 30,000 loaded electrical and 30,000 plug cycles.
See the proof >Shop the range.
| Product Codes | Finish |
| ARJ456 | Matte White – To Suit Matte White Plates |
| ARJ456B | Matte Black – To Suit Matte Black and Dark Grey Silver Plates |
| ARJ456DG | Dark Grey – To Suit Light Grey Brass Plates |
| Model | ARJ456, ARJ456B, ARJ456DG |
| Colour | Matte White, Matte Black, Dark Grey |
| Body Material | Polycarbonate |
| Rated Current | 1.5 A max |
| Insulation Diameter (Wire) | 0.7–1.6 mm |
| Temperature range | -40°C to 70°C |
| Durability | 700 insertion cycles minimum |
| Punch down Tool Type | Krone® |
| Compliance | Colour Coded to T568A and T568B standards. Tested to AS/CA S008:2010+A1:2014 |
| Warranty | 25 Years |
