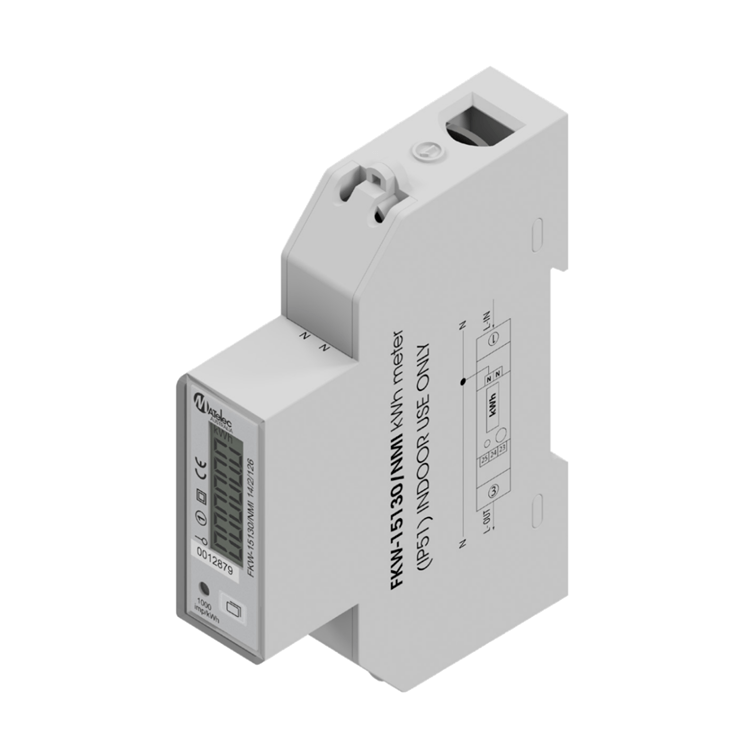

A Single Phase Kilowatt Hour Meter with LCD Display.
NMI Approved for metering.
Suitable for use in caravan parks, units / flats etc.
One module wide DIN Rail Mounted.
Direct Electronic 0-100A - Single Phase
Not suitable for solar installations (where export/import metering is required).
Recommended to be mounted in an enclosure (for suitable shrouding of connecting cables.)
| Materials | Housing - Fire resistant ABS |
| Weatherproof rating | IP51 |
| Display | Backlit blue LCD |
| Accuracy class | Class 1 |
| Insulation class | Class 2 |
| Maximum rated current | 100 Amp |
| Operational current range | 0.25 - 100 Amp |
| Over current withstand | 1000 Amp for 0.1s |
| Nominal voltage | 230 Vac |
| Operating frequency/td> | 50 - 60 Hz |
| Maximum cable capacity | 25mm2 (neutral 2.5mm2) |
| Operating temperature | -20°C to 65°C |
| Test output flash rate | 1000 impulses per kWh |
| Power supply indicator | Mains power ON |
| Consumption indicator | Flashing on load |
| Dimensions | 90mm (H) x 18mm (W) x 72mm (D), 1 Module |
