Bring the handover to life.
A press with a pulse.

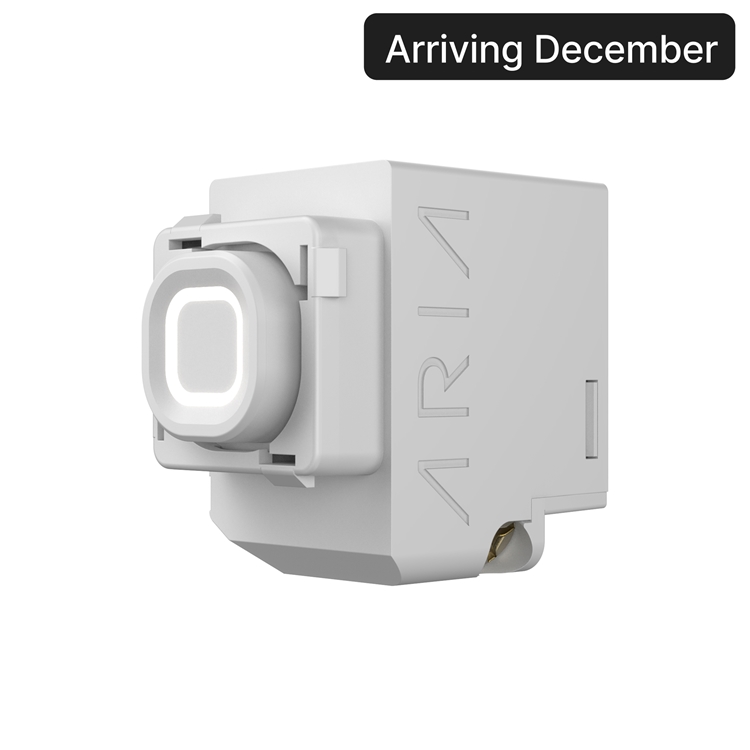

APBSME
LED Push-Button Switch Mech
ARIA’s LED Push-Button Switch Mechanism turns an on/off action into a handover moment clients can see and feel. Press once and a soft white LED follows the load, making the active state visible at a glance. In Matte White, the mech pairs tone-on-tone with Matte White ARIA plates for one uninterrupted front face. Behind it, two-wire connection removes the need for a neutral. Parallel multi-way switching supports up to 50m between switch loops. Rated to 1.6A for lighting, fans and contactor coils. Backed by a seven-year parts-and-labour warranty.
ARIA 30 Series mech
1.6A max load
No neutral required
7-year warranty
The press got interesting.
Show them a switch they’ll remember. The soft geometric glow follows the active state, adding a distinctive detail to the spaces your clients use every day.
Confidence,
Covered.
Seven details
that set ARIA apart.
Designed for the wall. Built for the work.
144 products for the whole home.
Coordinated plates and mechs bring power, control, fast charging, data and accessories together across four finishes, giving every room one cohesive look.
See the full range >
Four finishes. Not shy. Not shiny.
Two polycarbonate mattes made to resist oil & grime. Two anodised aluminium signatures, with contrasting edges that catch light without chasing attention.
Meet the finishes >
Slim. Not timid.
A stainless-steel-reinforced grid takes screw load off the slim 6.25mm face, helping corners stay flat without extra brackets or bulk.
See what’s behind the plate >
Australia’s first 65W Twin USB-C outlet.
Laptop-capable power, built into the wall through high-efficiency power conversion and ventilation. Get 65W solo or 20W + 45W together. No charger brick.
Shop 65W USB-C >
Installer-first. Right down to the terminal.
Familiar 30 Series mechs, generous 16mm² terminals, captive screws and 54mm hole-saw cut-outs make planning, wiring, and fit-off faster, from wall to cabinetry.
Discover installer benefits >
Dimming, in a whole new light.
Choose a familiar rotary dial, or ARIA’s signature LED-backlit toggle dimmer. Press the toggle on/off, push up to brighten, down to dim, with smooth fades.
Explore ARIA dimmers >
25-year warranty. Tested past the required minimum.
25-year parts-and-labour cover on non-electronic products. Seven years on electronics. Backed by 50,000 mechanical, 30,000 loaded electrical and 30,000 plug cycles.
See the proof >Shop the range.
| Product Codes | Finish |
| APBSME | Matte White – To suit Matte White Plates |
| APBSMEB | Matte Black – To suit Matte Black and Dark Grey Silver Plates |
| APBSMEDG | Dark Grey – To suit Light Grey Brass Plates |
| Nominal Supply Voltage | 220-240Vac 50Hz |
| Maximum Switched Load | 1.6A |
| Minimum Switched Load | 3W for three-way operation |
| Wiring type | 2-wire (Active and Load), no Neutral connection |
| Maximum Terminal Screw Torque | 1.2Nm |
| Compatible loads | LED light fixtures 240V incandescent/halogen 12V halogen c/w electronic transformer Iron Core Transformers Exhaust fans Ceiling fans Contactor coils |
| Terminals on product | Yes |
| Operating Temperature | -20C to +65C |
| Multiway switching | Yes. Suitable for muti-way control with Active and Load wires connected in parallel |
| Maximum distance between switches connected in parallel | 50m maximum between each switch loop |
| Dimming function | No. On/Off switching only |
| LED indicator | Yes. White LED. LED on when the connected load is on, LED is off when load is off |
| Short circuit protection | Yes Switches. Manual re-start is required |
| Overload protection | Yes. The switch will cycle the load off/on until overload is removed |
| Over Temperature protection | Yes. The switch will cycle the load off/on until overload is removed |
| Surge Protection | Yes |
| Ripple Single filtering | Inherent immunity |
| Zero-crossing Voltage detection | Yes |
| Terminal Size | Maximum 3 x 1.5mm² |
