Rotary dimming, made for ARIA.
Dim the light. Lift the finish.

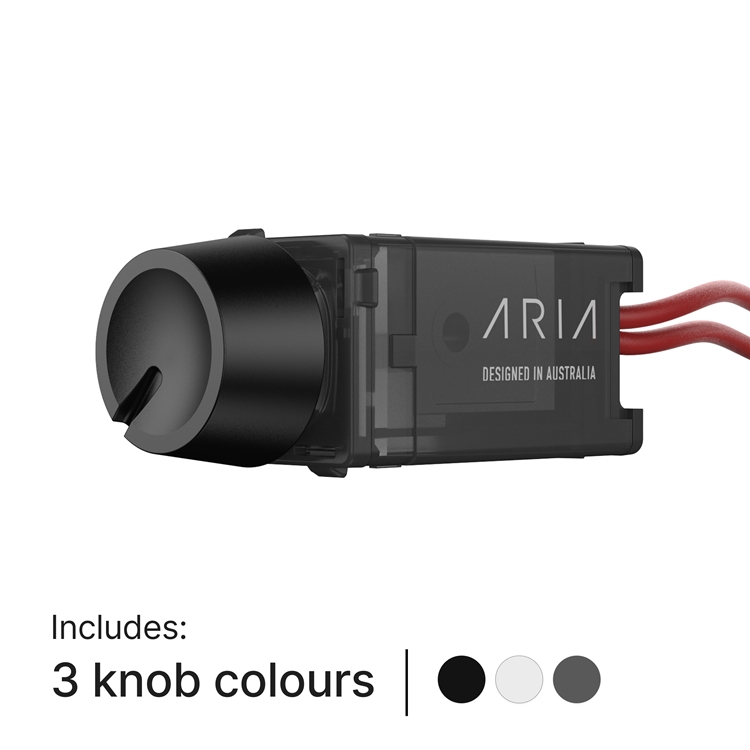

ADM250X
250W Externally Switched Rotary Dimmer
ARIA’s Externally Switched Rotary Dimmer keeps familiar rotary control inside the ARIA fit-off, with on/off handled by a separate switch. A smooth turn delivers trailing-edge dimming from 2W to 250W, with mechanical minimum-brightness adjustment to tune the low end to the load. Inside the pack, Matte White, Matte Black and Dark Grey dials suit any ARIA switch plate. Two-wire connection means no neutral is required at the dimmer. Compatible with dimmable LED, incandescent and halogen loads, it’s a good choice for jobs that need broader load compatibility and separate switching without breaking the ARIA finish. Backed by a seven-year parts-and-labour warranty.
Trailing-edge dimming
External on/off switch
2–250W load
7-year warranty
Same familiar turn. Two ways to switch.
Choose where the switching happens. Built into the dial with a press, or handled separately. Three dial colours come in the pack, keeping rotary control matched to any ARIA finish.
Rotary Dimmer
Confidence,
Covered.
Seven details
that set ARIA apart.
Designed for the wall. Built for the work.
144 products for the whole home.
Coordinated plates and mechs bring power, control, fast charging, data and accessories together across four finishes, giving every room one cohesive look.
See the full range >
Four finishes. Not shy. Not shiny.
Two polycarbonate mattes made to resist oil & grime. Two anodised aluminium signatures, with contrasting edges that catch light without chasing attention.
Meet the finishes >
Slim. Not timid.
A stainless-steel-reinforced grid takes screw load off the slim 6.25mm face, helping corners stay flat without extra brackets or bulk.
See what’s behind the plate >
Australia’s first 65W Twin USB-C outlet.
Laptop-capable power, built into the wall through high-efficiency power conversion and ventilation. Get 65W solo or 20W + 45W together. No charger brick.
Shop 65W USB-C >
Installer-first. Right down to the terminal.
Familiar 30 Series mechs, generous 16mm² terminals, captive screws and 54mm hole-saw cut-outs make planning, wiring, and fit-off faster, from wall to cabinetry.
Discover installer benefits >
Dimming, in a whole new light.
Choose a familiar rotary dial, or ARIA’s signature LED-backlit toggle dimmer. Press the toggle on/off, push up to brighten, down to dim, with smooth fades.
Explore ARIA dimmers >
25-year warranty. Tested past the required minimum.
25-year parts-and-labour cover on non-electronic products. Seven years on electronics. Backed by 50,000 mechanical, 30,000 loaded electrical and 30,000 plug cycles.
See the proof >Shop the range.
| Operating Voltage | 230 Vac 50 Hz |
| Ambient Temperature Range | 0-50˚ C |
| Maximum Load | 250W |
| Minimum Load | 2W |
| Switching | Requires an external switch for on/off operation |
| Compatible loads | See next page |
| Non-Compatible Loads | See next page |
| Dimmer Protection | Thermal Overload protection (conduction angle wind-back) Over Current (short circuit) protection (resettable) Over Voltage protection (resettable) |
| Compliance | AS/NZS 60669.2.1, CISPR15 |
| Externally switched 2-wire dimmer | No neutral wire connection required at the dimmer |
| DM250X | Fits standard Australian wall switch plates |
| ADM250X | Compatible with Aria wall switch plates |
| Rotary control | Minimum and maximum end-stops |
| Mechanical adjustment | Minimum brightness level |
| Integrated 'on' LED indicators | Blue LEDs: DM250X White LEDs: ADM250X |
| Warranty | 7 Years |
