Ultra Link Junction Lead - 4 x 2.5mm², 4 Pack

Description
Specifications

Easier Access Installs

Cut a 32mm hole and complete wiring from below, reducing time dealing with tight, hot, or awkward spaces like stairwells, cabinetry, or roofs. Includes screw holes for secure fixing in the roof.

LARGE TERMINALS

Fits 4 X 2.5mm² cables

Plenty of room to handle multiple conductors securely.

With Loop Terminal

Built to make looping quick and straightforward.

With cable attached for faster installs

Less time spent wiring means quicker jobs, less effort in tight spots, and a smoother day on site.

Always On Hand for the Unexpected

Whether for GPOs or lighting, Ultralink is a problem-solver you didn’t know you needed — until you do. A smart sparky always keeps a couple nearby.

Parts + Labour Warranty

Backed by the Voltex Lifetime Guarantee,
with expert support whenever you need it.

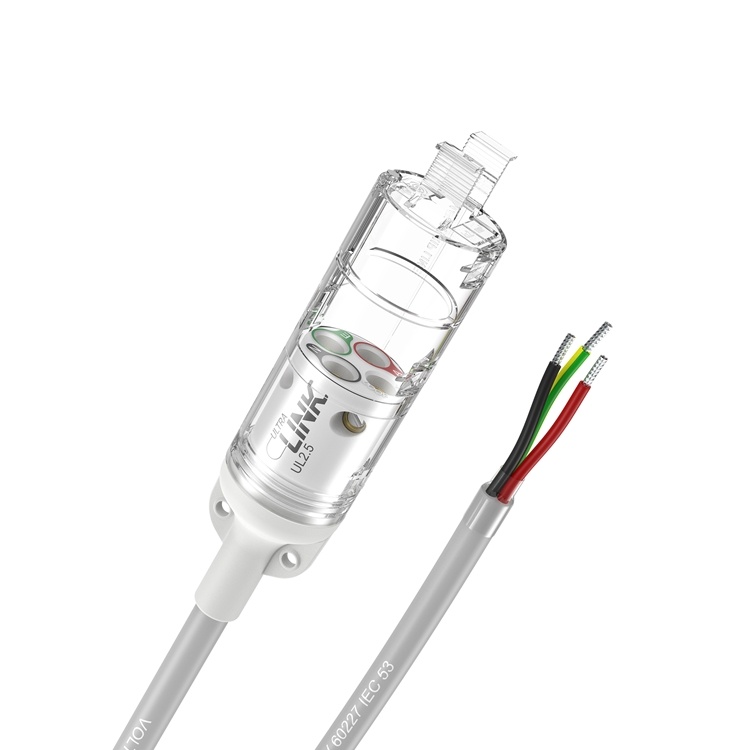

Models	UL2.5 (Standard)
Applications	Track-lights Batten light installations Down-light installations Stairwell lighting Cabinet or furniture lighting Small power circuits
Capacity	Up to 4 x 2.5mm² cables
Cutout Size	Fits into 32mm cutout hole
Terminals	Active terminal tunnels: 6.5mm Ø \| Earth tunnel: 6mm Ø
Pre-Terminated Lead	Yes, 3 x 2.5mm² cores (fixed length 270mm)
Rating	250V~ Max. 20A
Compliance	Meets electrical safety standards
Environment	Indoor use only (IP20-rated)
Warranty	25 Years
