SASMH9VRF
In Stock

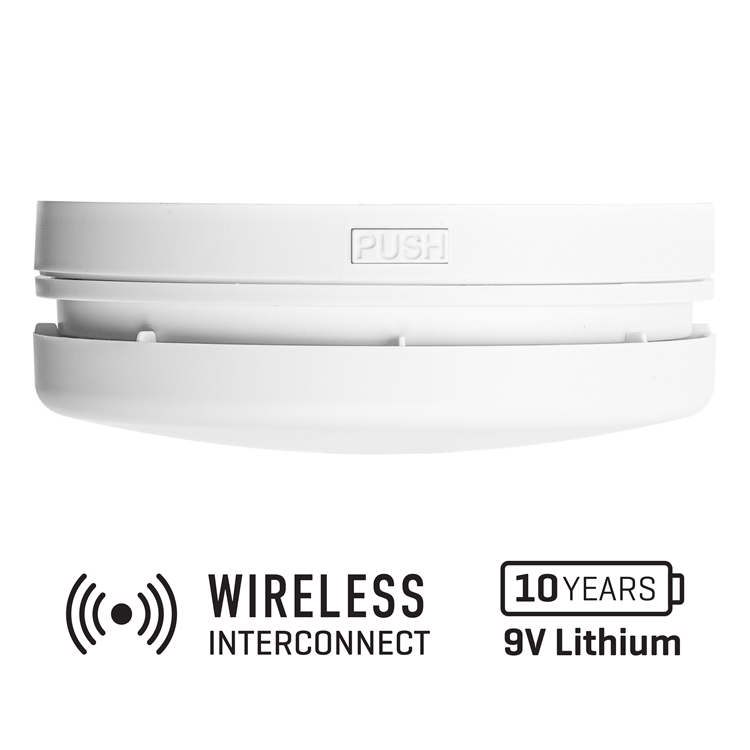

240V Hard Wired Photoelectric Smoke Alarm with 9V, 10 Year Lithium Backup Battery (Inbuilt Wireless Module)

240V photo-electric
SMOKE ALARM with 9V Lithium Battery Backup
SASMH9VRF

New & Redesigned
9V Lithium battery backup

Now with a 9V Lithium battery backup, these new models are less susceptible to induced voltage from hardwire interconnect cables.

SAS135MH Image 2

Voltex Smoke Alarm Compatibility Chart

Voltex Smoke Alarm Compatibility Chart

Dual Infra-Red Detection Beams

The smoke detection chamber has been redesigned to incorporate two detection beams instead of one. This double detection method allows the unit to more accurately determine a sudden increase in airborne particles, reducing false alarms.

Dual Infra-Red Detection Beams

Rigorously Tested

Voltex has invested in a state-of-the-art Smoke alarm testing chamber (one of a few in Australia) which is used to provide accurate in-house testing. This testing has allowed Voltex to identify and rectify nuisance alarming triggers to ensure Voltex is providing the best solution for your customers.

SASMH9V

Configurations

SASMH9V Config 01 and 02
SASMH9V Config 03
SASMH9V Config 04 and Not Allowed
SASMH9V Config 06

Now with a 9V Lithium battery backup, the smoke alarm its less susceptible to voltage-induced (faults) that would occur when running hard-wired interconnect cables making it less likely to have a nuisance alarming.

7 Years Warranty
Product Code SASMH9VRF
Power Supply 240Va.c. mains connected, with replaceable non-rechargable 10 Year backup lithium battery (9V DC)
Interconnectivity Standard Hard Wired and Optional Wireless (Wireless module inbuilt to unit)
Terminal Size Max 2x 2.5mm2
Sensing Type Photoelectric
Interconnection (Hardwired) Maximum 24 paired alarms (total wired and wireless), Maximum length 150m with 1.5mm2 SDI cable.  Accepts 10mm x 16/25mm trunking into base for surface mounting applications.
Size 133mm (W) X 49mm (H)
Operation Temperature 0°C to +45°C
Operation Humidity 5- 95% RH
Alarm Volume 85db at 3m (ISO 8201 Alarm Signal Pattern)
Hush Time 10 mins
Compliance AS3786:2014 + A1:2015 + A2:2018
Attachment
Smoke Alarm Installation Manual
Product Data Sheet
Smoke Alarm Installation Requirements
Pocket Guide for Voltex 10 year Lithium Battery Smoke Alarm
