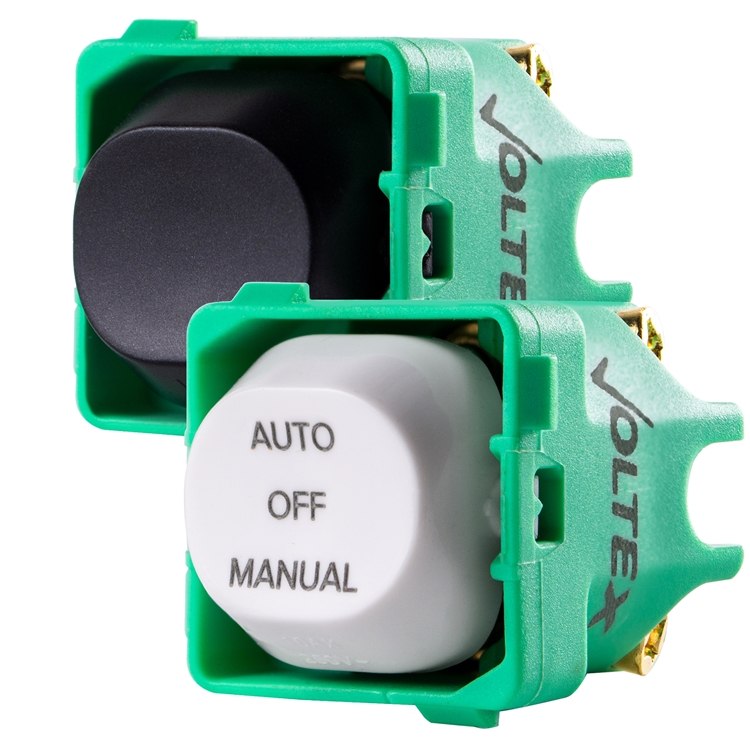

The new Voltex 3 Position Switch has arrived!
Also available in:
White: marked AUTO/OFF/MANUAL, HIGH/OFF/LOW, ON/OFF/AUTO, OPEN/OFF/CLOSED, SENSOR/OFF/ON and UP/OFF/DOWN
Matte Black: unmarked, and marked AUTO/OFF/MANUAL, HIGH/OFF/LOW, SENSOR/OFF/ON and UP/OFF/DOWN
3-position switch used with motion sensor to provide AUTO/OFF/MANUAL control
Specifications
| Switch Function | Single Pole, 2-way with center OFF |
| Rated Voltage | 250V |
| Rated Current | 10AX |
| Terminal Bore | ø4.0mm |
| Terminal Size | Accommodates 4x1.5mm2 or 2x2.5mm2 cable. |
| Screw | PH2 and SQ1 combination. |
| Body Size | Fits ø22mm hole. |
| Motor Rating | M50 |
| Compliance | AS/NZS 3133 and AS/NZS 3100 |
