TC1
In Stock

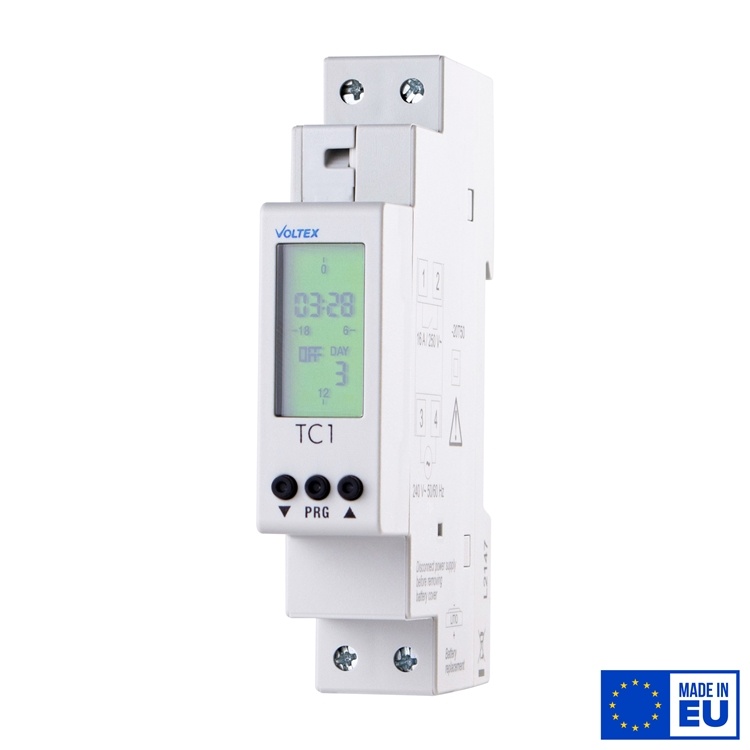

1 Channel DIN rail mounted Time Clock

Will Ship Today - Details
Order by 3:30pm Monday-Friday, and we should be able to ship your order out the same day. Orders placed during a weekend or public holiday will be processed the next business day.
New
Digital
Din Rail
Timer
One channel digital timer with weekly or daily programming.
Easy to read

Easy to Read

The backlite LCD screen shows the programmed on/off times, date, day and relay status on one screen. No need to move around different screens to find out basic information.

30 Min
Block

The timer splits the 24 hours of a day up into 48-time blocks, each block is 30 minutes long. When a block is ON, the relay output is on. The timer can be set to turn any combination of the 30-minute blocks ON.

Weekly
Or
Daily

By default, the timer is set for weekly operation with the possibility to set different programs on each day of the week. There is an option to change the timer to daily operation, where the same.

Backup Battery

The timer includes a replaceable backup battery to maintain the date and time when main power is lost. The battery life is 5 years and is replaced from the back of the timer.

Battery Backup
7 Year Warranty
Power supply 240Vac 50Hz
Relay capacity 16A @ 240Vac
Loads Incandescent 2000 W
Fluorescent 250 VA
Low voltage halogen 1000 VA
Halogen (240 V) 2000 W
CFL 200 VA
LED 500 VA
Battery life/type 4 years/Lithium CR-1632
Programming resolution 30 minutes
Programming Weekly (7 programs)7 different programs, one for each day of the week.
Option to set ‘Daily mode’ (same program runs each day)
Resolution of programming 30 minutes
Operating accuracy ± 1 second/day at 25°C
Operating temperature -20 to +50°C
Storage temperature -10 to +70 °C
Operating humidity RH 20 to 90 % non-condensing
Housing 1 DIN module
Protection degree IP20
Quiescent Power 1W
Terminal size 1 x 4mm² cable maximum
Attachment
TC1 Product Data Sheet
TC1 Installation Manual;
