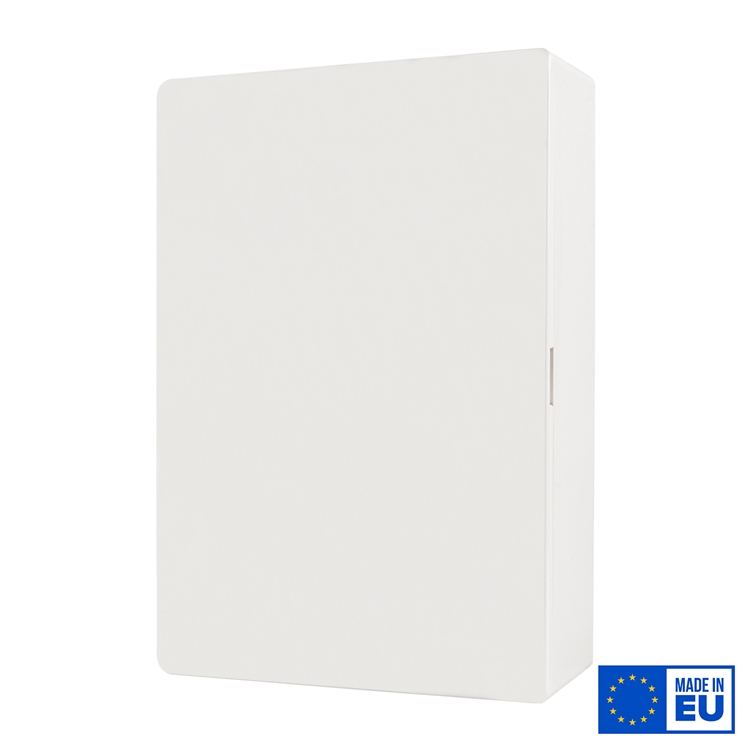

CUBO Switchboard - Surface Mounting - 24 way - White Door

Will Ship Today - Details
Order by 3:30pm Monday-Friday, and we should be able to ship your order out the same day. Orders placed during a weekend or public holiday will be processed the next business day.
Voltex Logo
CUBO Switchboard Series PSS
IP 40

Introducing the new CUBO switchboard range from Voltex.
Developed to suit the specific requirements of the Australian electrical contractor. These IP40 surface mount boards range from 12 to 36 way with a transparent or white door.

Time is Money

Time is Money

We know your time is valuable, which is why we have completely pre-assembled each board.
The result is a quicker installation, with less plastic packaging to dispose of, so you can work more efficiently.

More Real Estate

With up to 40% more volume compared to our current boards, the new CUBO range is designed for improved accessibility. The extra space allows for a more comfortable installation experience.

Up To


29mm depth under the DIN rail gives you plenty of room to run wiring looms. You can also mount the rail lower to provide additional space for automation and solar modules. If you need even more room, you can secure the DIN rail anywhere along the vertical channels on the bottom of the board. The vertical channels can also be used to fasten a mounting plate for ultimate flexibility.


The Earth and Neutral Bars have been customised based on your feedback. The entry terminals take 35mm2 cable, and the bars offer double screw connection. The screws are captive and wound out from production to save you time. Each bar is configurable to suit a variety of situations.


Room Temperature Range -25°C / +40°C
Maximum Operating Voltage 1000VAC / 1500VDC
Colour and Material (Door) PSS-W: ABS White RAL 9003. UV Stabilized.
PSS: ABS Smoky grey/blue. UV Stabilized.
Colour and Material (Front Panel) ABS White RAL 9003. UV Stabilized.
Colour and Material (Base) PS (V0) Grey RAL 7035.
Accessories included Pole fillers, module identification label, and circuit labelling set.
(Busbars, Bar Protection Caps and Switchboard Lock sold separately)


Compliance AS 62208-2006
Degree of Protection IP40
Resistance to impact IK08
Auto-extinguishing degree V-0 (AS/NZS 60695-11-10)

Compliance AS/NZS 60998.2.1:2012
Rated current 125A
Supply terminals 7.8mm (accepts 35mm2 cable)
Other terminals 5.2mm (accepts 16mm2 cable)
Screw details PH2/Flat screwheads. Clear passivated steel. Rounded ends. Captive in bar. Wound out from production.
Product Supplied Neutral Bars Supplied Earth Bars
PSS12 (2x(35mm2)+8x(16mm2)) + 2x[4x(16mm2)] 2x(35mm2) + 10x(16mm2)
PSS18 (2x(35mm2)+8x(16mm2)) + 3x[4x(16mm2)] 2x(35mm2) + 16x(16mm2)
PSS24 2 x [(2x(35mm2)+8x(16mm2)) + 2x[4x(16mm2)] 2 x [2x(35mm2) + 10x(16mm2)]
PSS36 2 x [(2x(35mm2)+8x(16mm2)) + 3x[4x(16mm2)] 2 x [2x(35mm2) + 16x(16mm2)]
CUBO Surface Mount Product Data Sheet
CUBO Surface Mount Installation Manual
