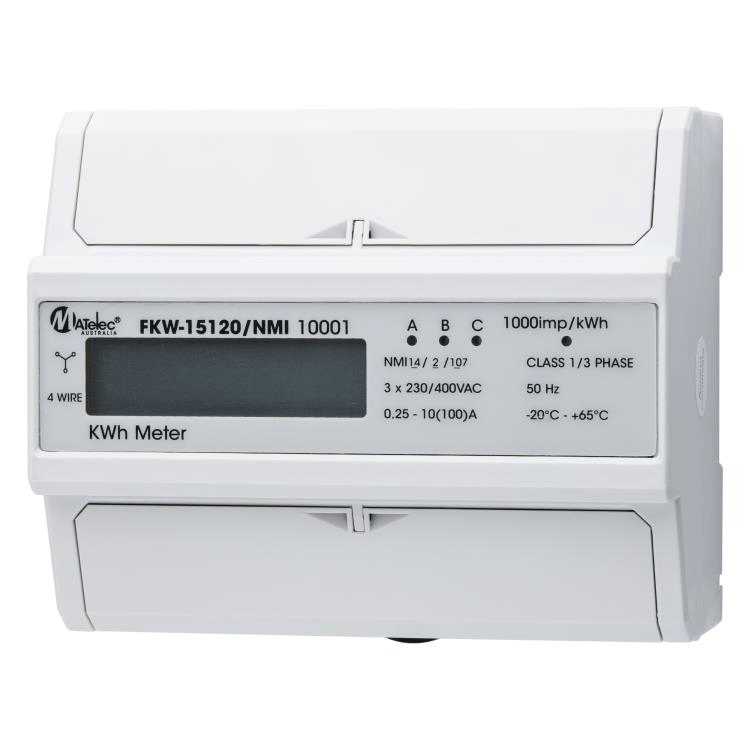

DIN RAIL KWH Meter Three Phase NMI Approved

Will Ship on Monday - Details
Order by 3:30pm Monday-Friday, and we should be able to ship your order out the same day. Orders placed during a weekend or public holiday will be processed the next business day.

Matelec1 year warranty

NMI Approved

A Three Phase Kilowatt Hour Meter with LCD Display.

Seven modules wide - DIN Rail Mounted.

Direct Electronic 0-100A - Three Phase


Fits inside standard Voltex switchboards

Not suitable for solar installations (where export/import metering is required).

Product Code FKW-15120
Accuracy Class 1
Maximum Rated Current 100A
Nominal Voltage 230/400Vac (3~)
Operational Current Range 0.25A - 100A
Over Current Withstand 1000A for 0.01s
Operational Frequency Range 50-60Hz
Internal Power Consumption <0.4W / 8VA
Test Output Flash Rate 1000 impulses per kWh
Power Supply Indicator Mains power ON
Consumption Indicator Flashing on load
Display Backlit Blue LCD
Maximum Cable Capacity 25mm² (Neutral 4mm²)
Operating Temperature -20º C to +55º C
Operating Humidity < 95%
International Standard IEC62052-11, IEC62053-21
Warranty One year
Backup Battery 3.6V Lithium
Housing Material Fire Resistant ABS
Weatherproof Rating IP51
Tamper Proof Kit Available
Dimensions 100mm (H) x 122mm (W) x 65mm (D) - 7 Modules
DIN Rail KWH Meter User Manual
DIN Rail KWH Meter Spec Sheet
