MSE302515
In Stock

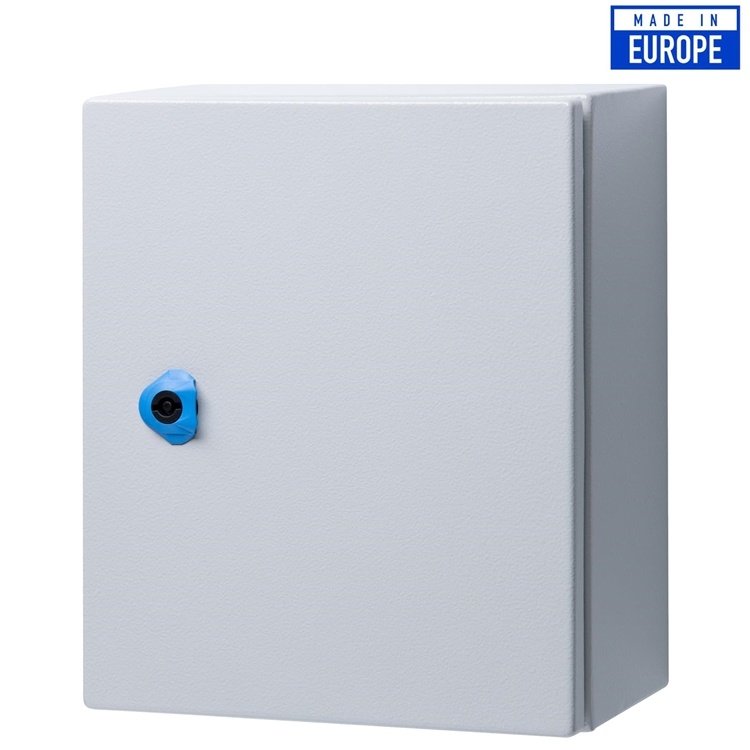

Mild Steel Enclosure 300mm H x 250mm W x 150mm D IP66 IK10

VOLTEX Switchgear Made in EU


Ideal for housing electrical or electronic switchgear, control gear and equipment necessary to supply, distribute and transform electricity. Recommended for use in environments requiring a high degree of protection against dust, splashes and impacts.

  • Made with materials of the highest quality.
  • Cabinet made with cold-rolled steel.
  • Has 2mm galvanised steel mounting plate. 180mm height x 250mm wide.
  • Coated with hardened grey RAL 7035 polyester.
  • Reversible door for maximum flexibility in installation.
  • Injected polyurethane sealing gasket on door & cable entry.
  • Coated with hardened RAL 7035 polyester paint, embossed, 80-120 µ, with UV protection.
  • High IP Protection of IP66
  • Superior Impact Strength of IK10

Not suitable for use near coastal areas or in higher weathering locations- we suggest use of Stainless steel or "GRP" type enclosures in these areas.

Height 300mm
Width 250mm
Depth 150mm
Cable Entry Dimensions 80mm*150mm
No of Locks 1
IP Rating IP66
Impact Rating IK10
Corrosion Resistance C4-M
Material Cold-rolled Steel
Coating Hardened RAL 7035 Polyester Paint, embossed, 80-120, with UV protection
Ambient Temperature Range (-25ºC) - (+40ºC)
Maximum Operating Voltage 1000 V AC
Maximum Temperature for Sealing Gasket 80ºC
Maximum Temperature for Polyester Paint 125ºC
Gasket Injected Polyurethane Sealing Gasket
Attachment
Mild Steel Enclosure Specsheet
