The Voltex Shadowline range of switches has been designed for ease of installation.
- Straight edges for easy alignment
- Cutout template provided
- Large terminals with captive screws
- Slim 4.7mm thickness
- Exceeds all relevant Australian & New Zealand Standards
- Multiple oval shaped mounting holes in the plate for flexibility when mounting.
- Standard Matt Finish.

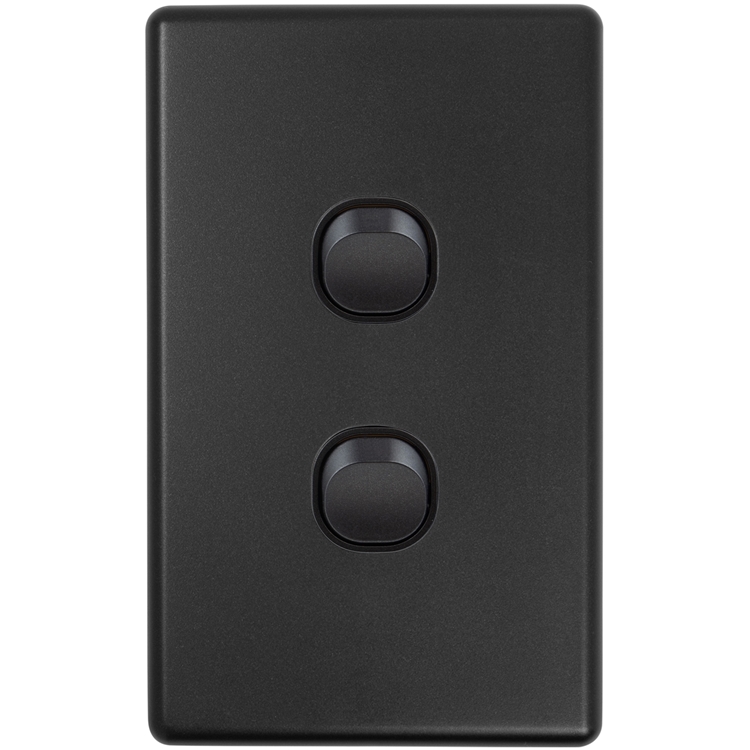

- Black double gang switch - Shallow plate
Plate size | 74mm (W) x 114mm (H) |
Mounting centre | 84mm |
Plate Thickness | 4.7mm |
Pole Configuration | 1 pole |
Rated Voltage: | 250V 20A / 16AX |
Terminals | |
Motor Rating | M80 |
Standards | ASNZS 3133 AS/NZS 3133 AS/NZS 3100 |
