LW1248-5K
In Stock

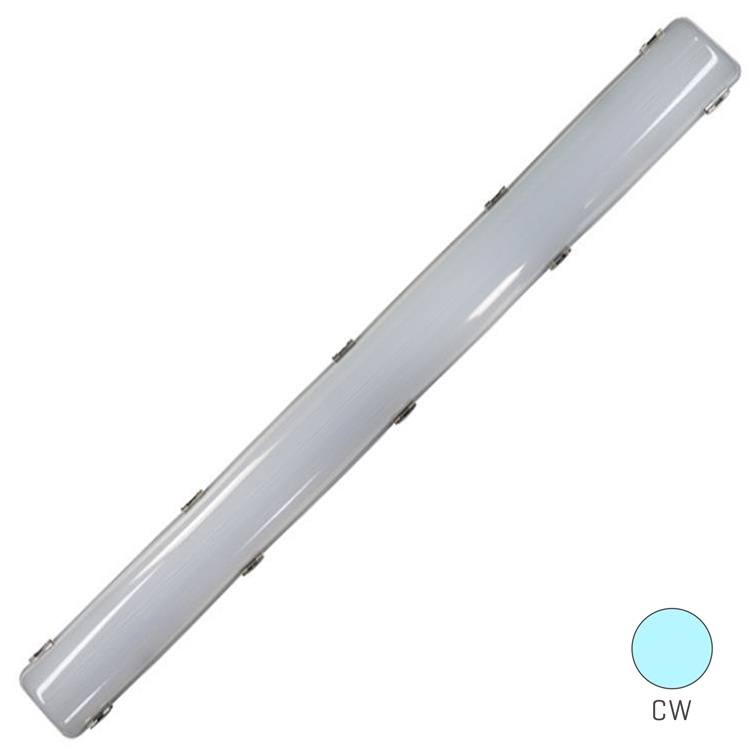

LED 48W Weatherproof IP66 Batten - 1160mm - 5000K

Will Ship on Wednesday - Details
Order by 3:30pm Monday-Friday, and we should be able to ship your order out the same day. Orders placed during a weekend or public holiday will be processed the next business day.


Voltex Lighting7 years warranty


  • Weatherproof (IP66) Vandal Resistant fittings
  • Polycarbonate lens and base - UV stabilised (Fireproof V-0)
  • High output LG® LED chips
  • OSRAM® LED driver (Non Dimmable)
  • All fixings and brackets supplied
  • Stainless Steel clips
  • Ideal for outdoors and washdown bays
  • 7 year warranty
  • Lumens: 4900Lm
  • Operating Temp: -20˚C to +40˚C
  • Dimensions: 1160mm (L) x 120mm (W) x 108mm (H)


Product Code LW1248-5K
Input Voltage 200-260 VAC 50/60Hz
Opal diffuser material UV Stabilized Polycarbonate (PC) Opaque White
Body material Polycarbonate (PC) Grey
Fireproof grade V-0
Input Power (Watts) 52
Clips & Mounting Brackets 304 Stainless Steel
Terminal Block 3 Poles Screw Terminal 6mm² capacity
Driver Efficiency >85.1
Driver OSRAM® OPTOTRONIC (Non Dimmable)
LED Brand LG®
LED Type SMD2835
LED Qty (Pcs) 104
CCT - Colour Temperature (Kelvin) 5000K
CRI (Colour Rendering Index) >80
Typical Lumens (+/-5%) 4900Lm
Lighting Efficiency up to 105Lm/W
Power Factor >0.95
Beam Angle 120°
IK rating (Input Resistance) IK08 (Protection against 5 joule impact)
IP rating IP66
Warranty 7 years
Certificates ROHS, EN62471, ISO 9001:2008
Net Weight 2.2kg
Product Size (mm) 1160 (L) x 120 (W) x 108 (H)
Fixing Hole Centre 770mm
Maximum Luminaires per circuit
(Typical) Type C 16A
48
Operating temperature -20°C to +40°C

Attachment
LED IP66 Battens Instructions
LW1248-5K Spec Sheet
