PROMASTOP Fire Rated UniCollar 2250mm

Product Code:
FRPC
Availability:
Will Ship on Monday - Details
Order by 3:30pm Monday-Friday, and we should be able to ship your order out the same day. Orders placed during a weekend or public holiday will be processed the next business day.

PROMASTOP Fire Rated UniCollar 2250mm

  PROMAT LOGO

PROMASTOP® UC Unicollar® is one of a new generation of fire collars designed to protect uPVC, HDPE, PP and other plastic pipes which pass through fire rated elements of building construction. The product has been tested and approved to the relevant criteria of most international standards which include AS 1530: Part 4, BS 476: Part 20 and has UL Certification for FRL up to 240 minutes.

PROMASTOP® Unicollar® is packed in a box which contains a 2250mm length of collar (150 segments). The box has the installation details printed on one face. Fixing accessories are included. The collar is designed so that it can be cut and snapped in segments of 15mm. For instance, one box is the equivalent of five x 110mm outer diameter (OD) collars. Note that at the time of publication, test data is available for pipe sizes up to 200mm. Please consult Promat Technical Department for more details.

PROMASTOP® UniCollar Installation Guide for concrete slabs


PROMASTOP® UniCollar Installation Guide for walls

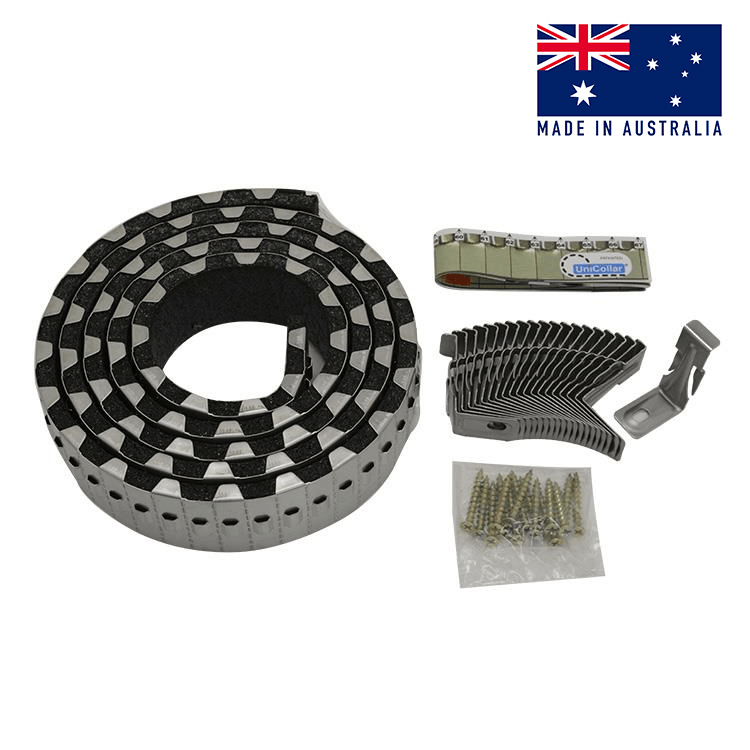

This PROMASTOP® Unicollar® kit comes with:

  • 2250mm of Fire Rated Collar (150 of 15mm segments)
  • 20 x Fastener Tabs
  • 15 x Screw-In Fasteners
  • 15 x Nail-In Fasteners
  • 1 x UniCollar Measuring Tape

Voltex Product Code FRPC
Australian Standard AS 1530: Part  4
AS 4072: Part 1
Fire Rating FRL -/120/120
Material Galvanised Steel & Promat Intumescent Material
Collar Length Supplied 2250mm (150 x 15mm segments)
Country of Manufacture Australia

Attachment
UniCollar_datasheet.pdf
UniCollar_Slab_Certificate.pdf
UniCollar_Wall_Certificate.pdf
