Improved Design
PP24C6
In Stock

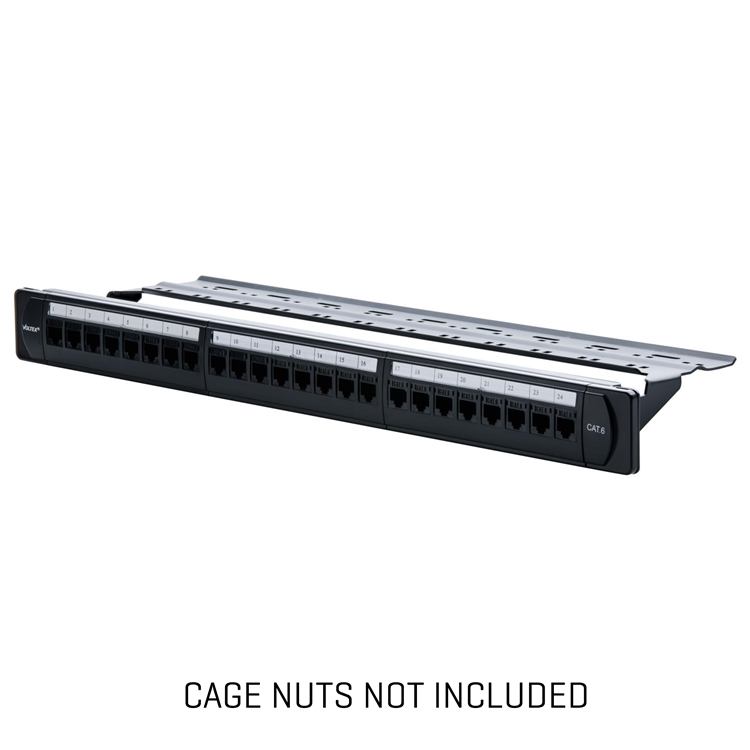

Cat6 UTP 24 Port Patch Panel

Will Ship on Monday - Details
Order by 3:30pm Monday-Friday, and we should be able to ship your order out the same day. Orders placed during a weekend or public holiday will be processed the next business day.


VOLTEX DataCommslifetime warranty


Voltex Cat6 UTP 24 Port Patch Panel. The panel contains 24 RJ45 ports and includes icon labels with plastic holders that you can mount on the front of the panel for easy port identification.


  • Tested to ISO/IEC 11801 and ANSI/TIA/EIA-568-B Standards
  • Individual removable modular jacks
  • Removable rear cable management tray
  • Suits Krone punchdown tool
  • 24 ports


RJ45 Cat6 Jack Specifications

Electrical
  • Voltage Rating: 125 VAC RMS
  • Current Rating: 1.5 AMP
  • Contact Resistance:100 MilliOHS MAX
  • Insulation Resistance: 1000 MEGOHMS MIN @ 500 VDC
Mechanical
  • Housing Material: PC UL 94V-O
  • Contact Blade: Phosphor Bronze
  • Insert Material: Flame Retardancy ABS UL94V-O.
  • PCB Material: FR-4 Thickness 1.6mm
  • Contact Material:Phosphor Bronze Stamp Pin T=0.35mm
  • IDC Contact Material: Phosphor Bronze T=0.5mm, with Tin plating.
  • Wire: 24AWG - 26AWG
Attachment
Voltex Cat6 UTP 24 Port Patch Panel Product Data Sheet
