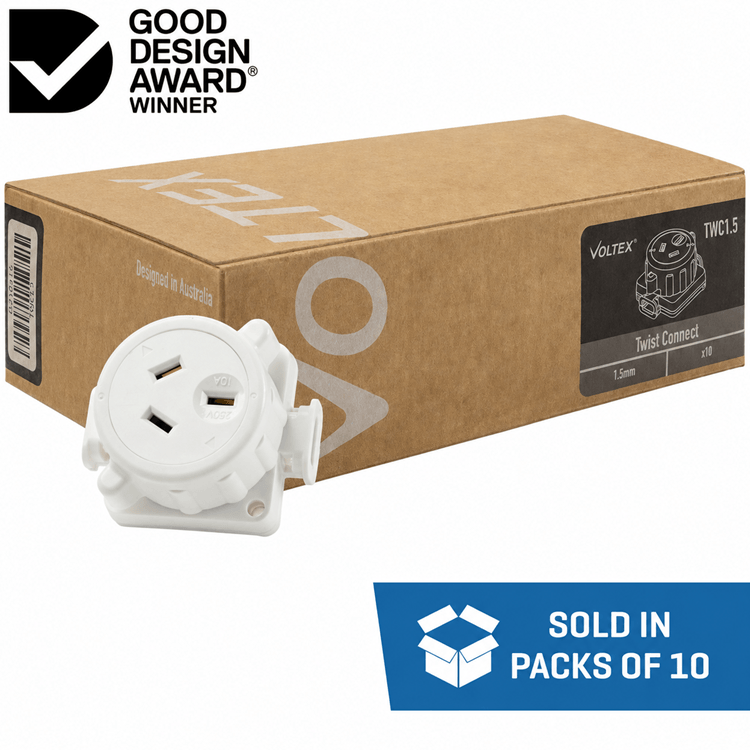

10 PACK - Twist Connect 10A Surface Sockets for 1.5mm² stranded cable

Description
Specifications
Download

NOTE: Use ONLY on 7-strand flat 2 Core + Earth TPS cables

Not compatible with aged, hardened, solid single core, or flexible cables.

TWC 1.5

TWC 2.5

Fast & Reliable

The Twist Connect is the new quick connect socket outlet designed in Australia by sparkies, for sparkies!

This design reduces installation times by more than 80%, and ensures a positive, reliable connection every time.

Solid & Compact

Made from impact resistant polycarbonate, the Twist Connect has been engineered in Australia
to give you confidence that it will last a lifetime.

Has been specifically designed to make the installation experience a breeze and to fit easily through a 70mm cut-out.

Precisely Engineered

Two Twist Connect versions have been specifically created to accomodate the small but critical difference between 1.5 mm² and 2.5 mm² cable.

The blades are precisely positioned to align with each conductor when the cable is pressed into the channel.

Use only on 7-strand flat 2 Core + Earth TPS cables (not compatible with aged, hardened, solid single core, or flexible cables)

STEP 1: after pressing the cable on the blades. (section view)

STEP 2: after closing the Twist Connect. (section view)

End of line termination pocket.

Installation Process

Please follow this process
to ensure a correct installation.

Untwist the collar until it clicks

Remove the base and push the cable into the channel (make sure to check polarity and to press well)

Reinsert the base

Twist the collar until the arrows align

Built To Last

The Twist Connect is certified to - and exceeds - all relevant Australian Standards, and has met endurance performance tests that surpass the expectations of its 25-year warranty.

After certification it underwent further field testing for 12 months by electricians across Australia, to confirm that its performance exceeds their trade standards, before its release to market in 2021.

Accelerated Aging Endurance Trials in Humidity Chamber:

2,000 Hours,

at 85ºC

in 85% Relative Humidity.

Sample box only available in TWC1.5 variant
Rating: 250V, 10A
Use only on 7-strand flat 2 Core + Earth TPS cables (not compatible with aged, hardened, solid single core, or flexible cables)
For 1.5mm cable use TWC1.5 (white collar, white insert)
For 2.5mm cable use TWC2.5 (grey collar, grey insert)
Tested to ASNZS 3112 and IEC 60998 Part 1 and 2
Fits through a 70mm downlight hole
50% faster if you install it correctly
